Steel wire ropes and wire rope slings

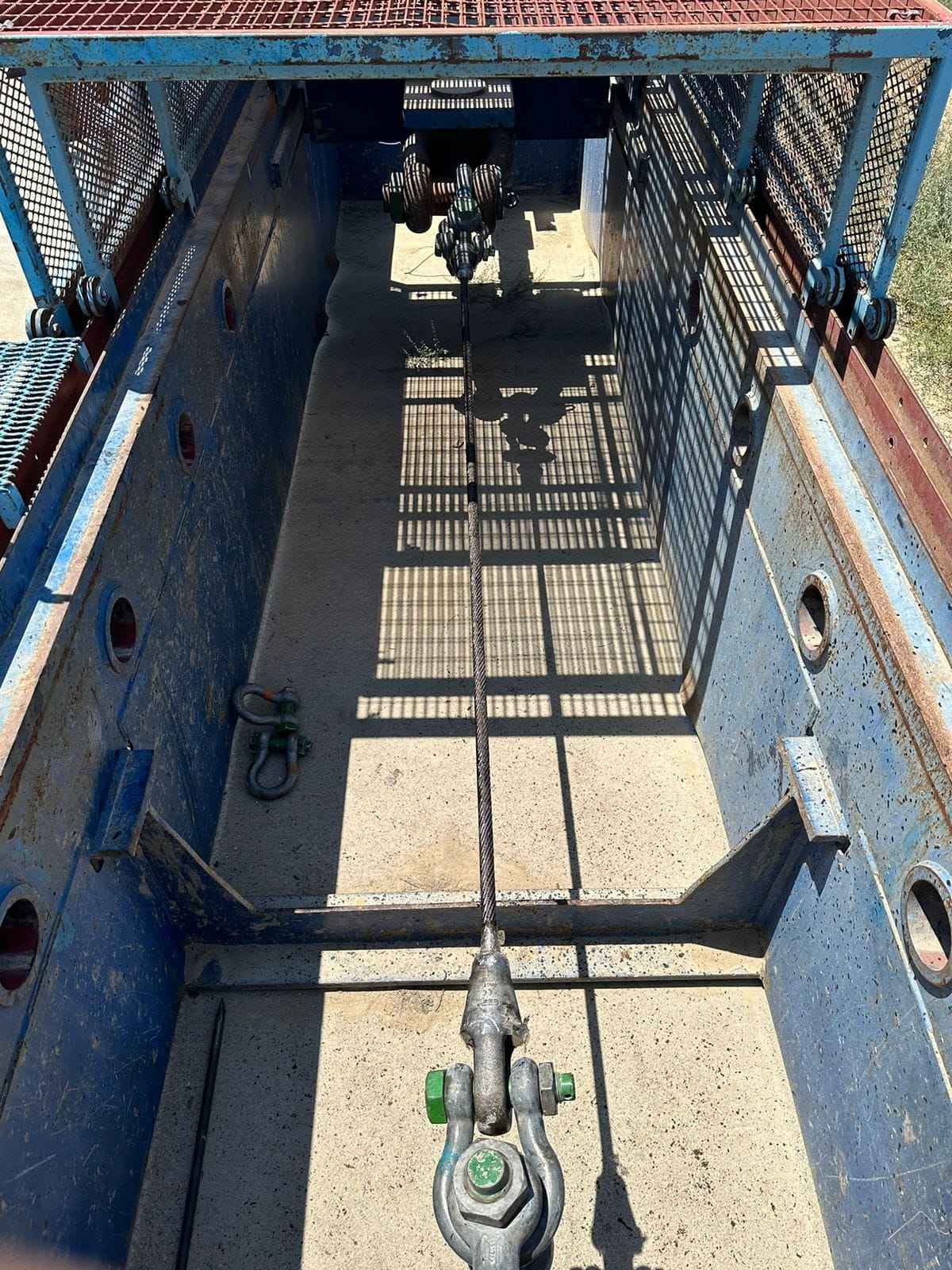

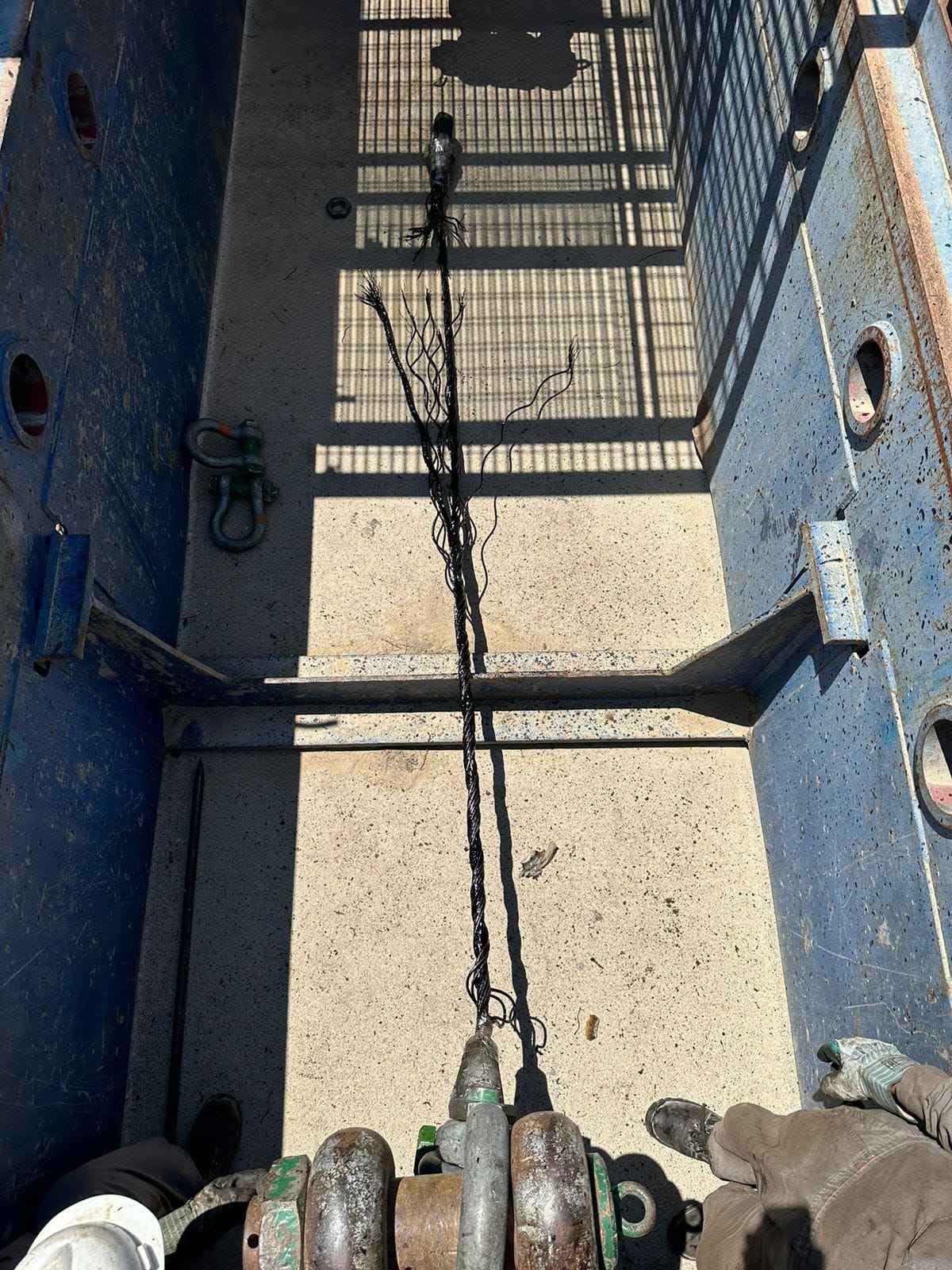

Provide the rope construction, diameter, length, termination type and required force. The photographs show an installed specimen and a wire rope after a break test.
Lifting.kz · Our own testing facility
Wire rope and sling testing on a 500 tonne test bed

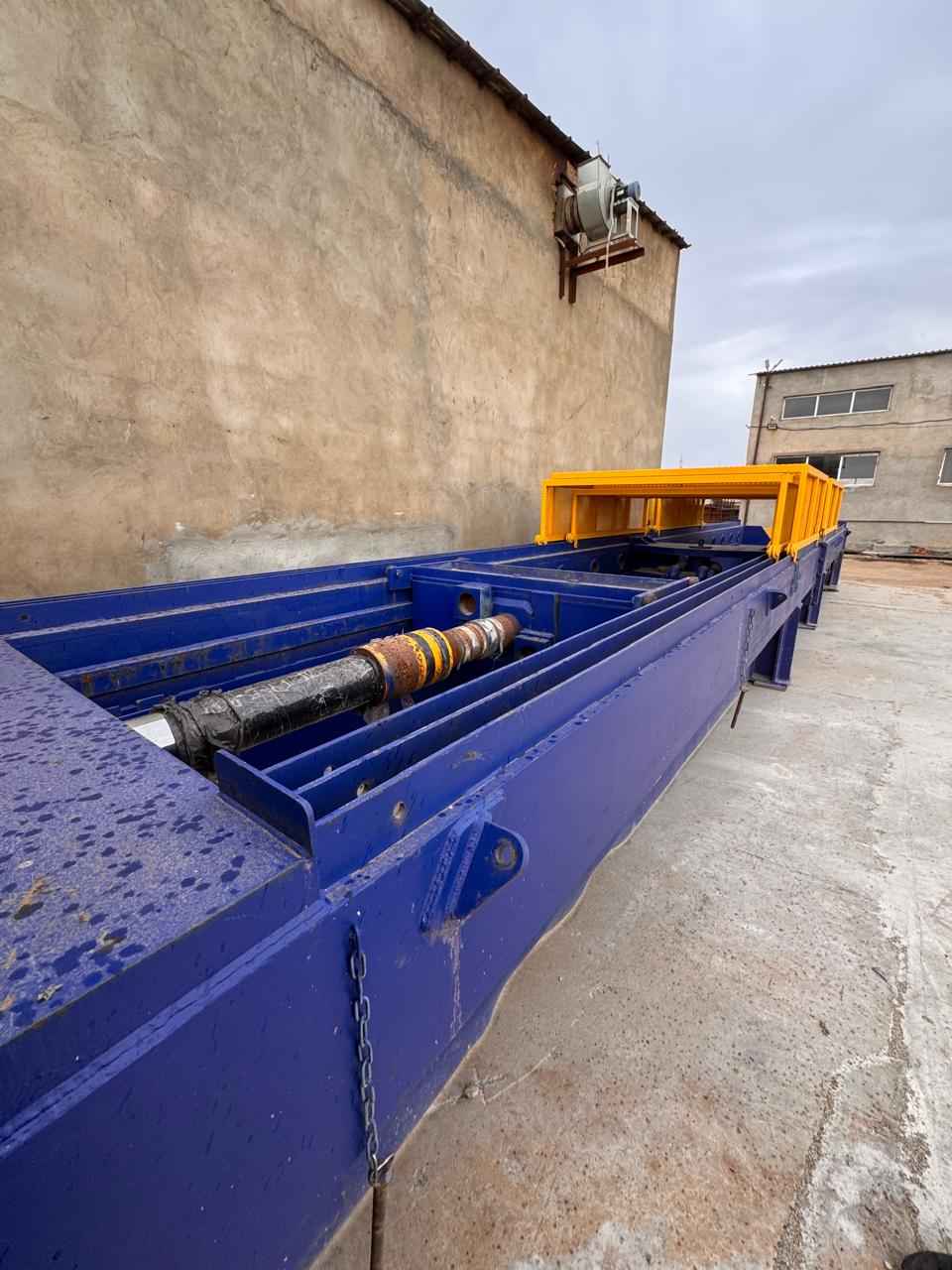

Lifting.kz’s horizontal hydraulic test bed for tensile testing. We agree the specimen, connections, required force and test programme before accepting your sample.
Testing at our own facility
Corporate experience and partners ↓Test footage: specimen, connections and force control
Five recordings from Lifting.kz’s facility. Select a recording to review specimen installation and test bed operation. Playback starts when you press play.

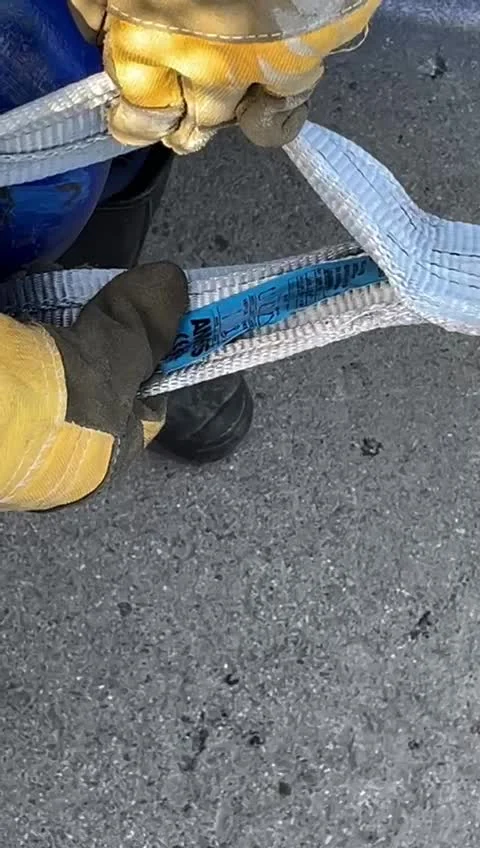

Synthetic specimen connections and control panel
Duration: 1:48Recording from Lifting.kz’s facility showing a synthetic specimen connected to fixtures and observation of the digital control panel indicator.
Each displayed force relates to the individual test shown. We agree the required force and acceptance criteria for your item.

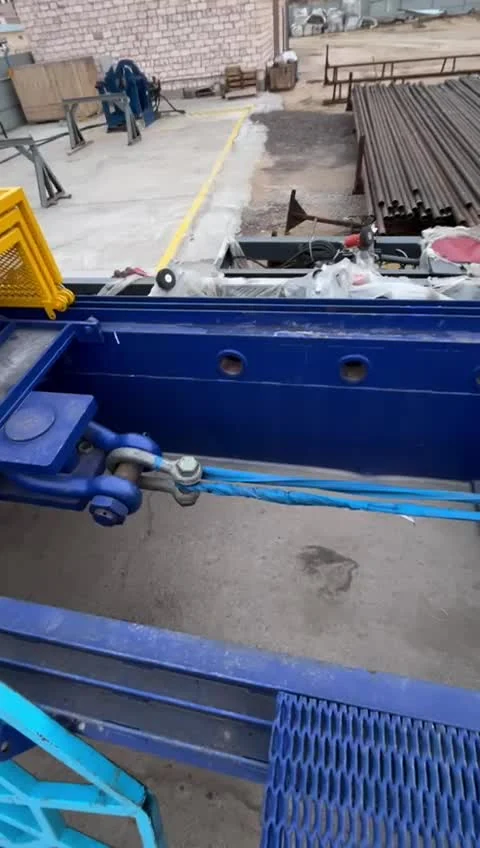

Discuss your test programmeTest bed working area and digital force indication
Duration: 1:43Specimen in the horizontal frame, connection fixtures and force indication during operation of the test bed.
Each displayed force relates to the individual test shown. We agree the required force and acceptance criteria for your item.

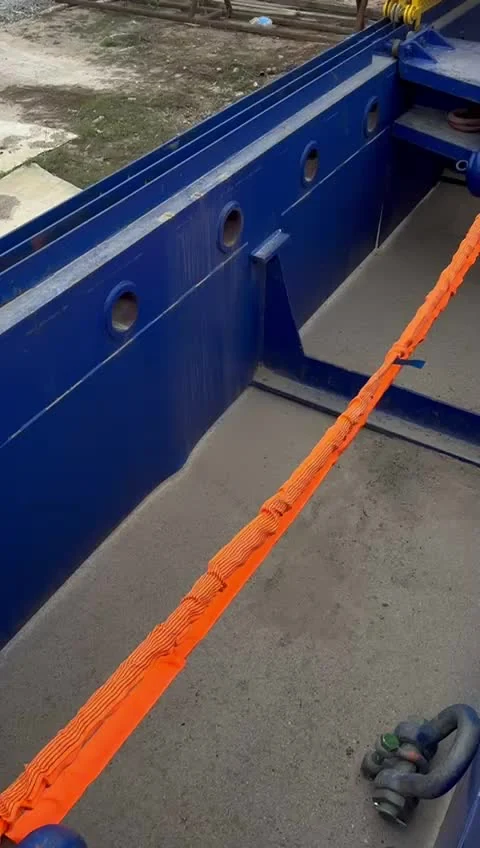

Discuss your test programmeSynthetic specimen testing: installation and indication
Duration: 2:14An installed synthetic specimen and the digital force indicator on the control panel are shown.
Each displayed force relates to the individual test shown. We agree the required force and acceptance criteria for your item.

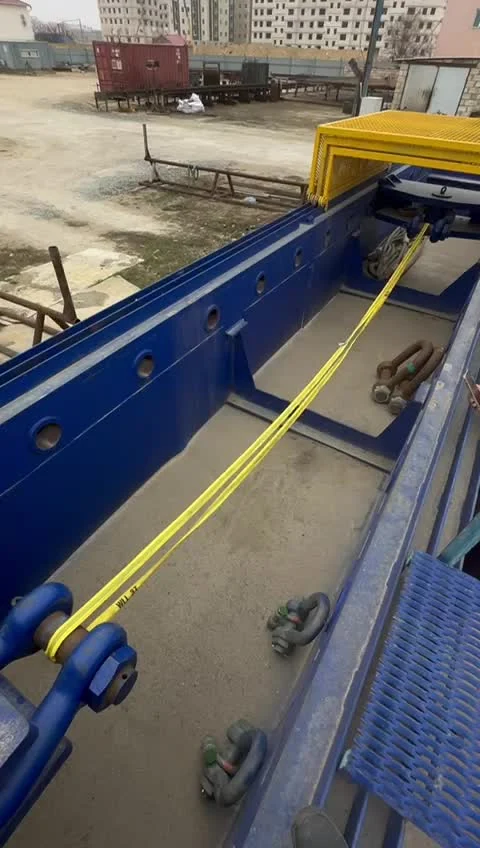

Discuss your test programmeSynthetic sling in the test bed: testing process
Duration: 2:30Footage of the working process showing a synthetic sling in the load frame and the control panel.
Each displayed force relates to the individual test shown. We agree the required force and acceptance criteria for your item.

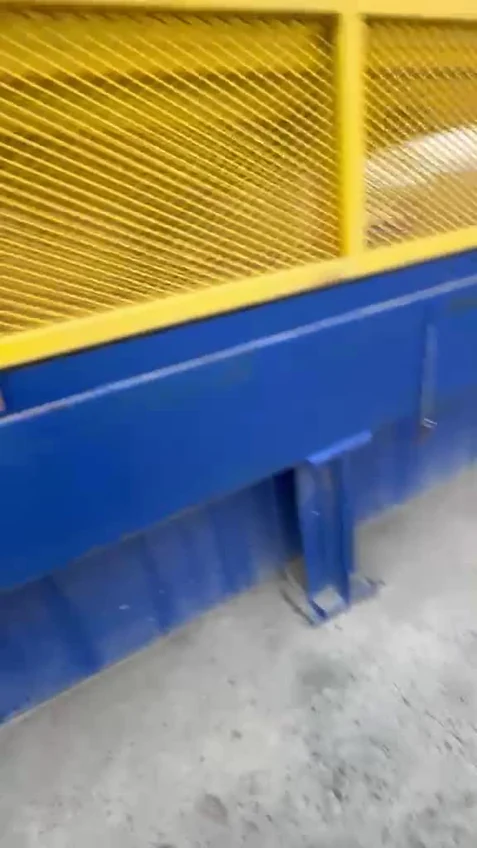

Discuss your test programmeOverview of the test bed and protective guarding
Duration: 0:25A short overview of the horizontal load frame, hydraulic assembly and protective guarding.
Each displayed force relates to the individual test shown. We agree the required force and acceptance criteria for your item.
Discuss your test programme500 tonnesMaximum test force, as specified by Lifting.kz
Our own facilitySample acceptance and test programme by agreement
Actual photos & videosSee the test bed and sample connections
The right load for your application, agreed before testing
The test bed applies a tensile force along the secured specimen. Its capacity supports consideration of high-load testing tasks; suitability also depends on specimen dimensions, connections and the available fixtures.
To the best of Lifting.kz’s knowledge, this is the only 500 tonne test bed in Kazakhstan.
500 tonnes describes the test bed’s capacity. It is not the working load limit of every item fitted to it: the force for each specimen is defined in its agreed test programme.
Items you can submit for assessment
Synthetic slings
Specify the sling type, WLL, length and purpose of the test. The videos show synthetic specimens installed in the horizontal working area.
Connections and lifting accessories

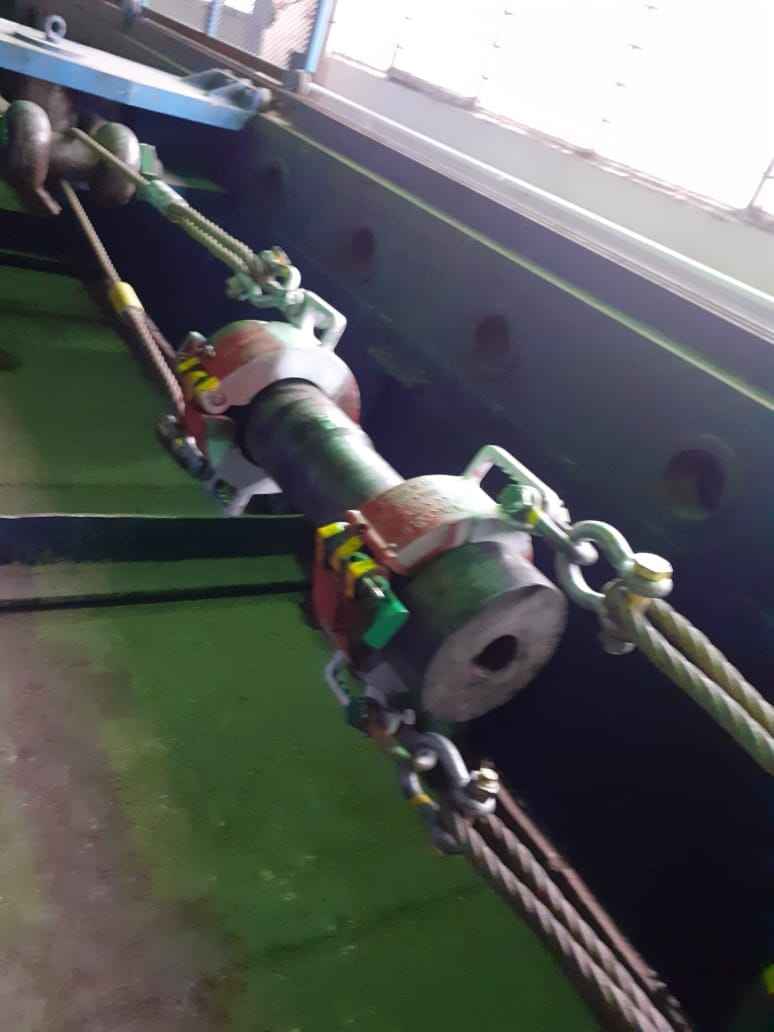

Send a drawing or photographs of the connections. We review fixture compatibility, the proposed load path and required test accessories before agreeing the work.
Test quality starts with proper preparation

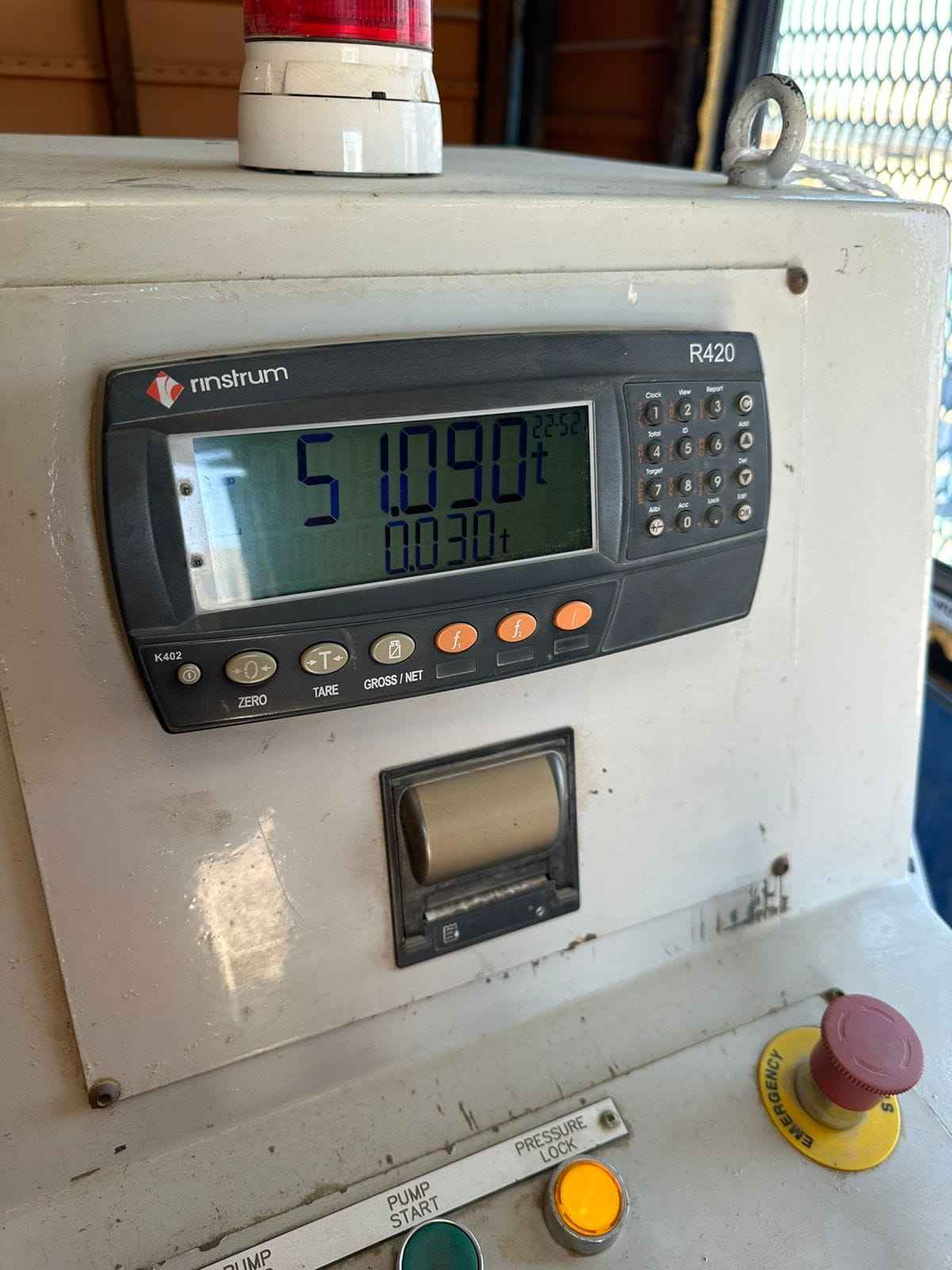

Industrial customers need clear specimen identification, suitable connections and an agreed loading programme. The supplied photographs show the load frame, protective guarding, connection fixtures and a Rinstrum R420 digital indicator on the control panel. Measurement and documentation requirements are agreed for your application.
Key information
| Test bed force capacity | Up to 500 tonnes, as specified by the equipment owner |
|---|---|
| Configuration | Horizontal hydraulic test bed |
| Location of the work | Lifting.kz’s own testing facility |
| Force indication | Rinstrum R420 digital indicator shown in the photographs |
| Working length and connections | Reviewed against sample dimensions before acceptance |
| Test programme and documents | Agreed when arranging the service |
How to arrange a test
Send the item details
Item type, dimensions, documented WLL or breaking force, connection photographs and number of specimens.
Agree the programme
Test objective, force, hold time, acceptance criteria, client attendance and required documentation.
Deliver the sample to the facility
We confirm installation suitability, preparation requirements and the acceptance process. Transport arrangements are agreed in advance.
Receive the agreed test results
Force recording, photographs, video and the scope of the issued documents are defined by the test programme.

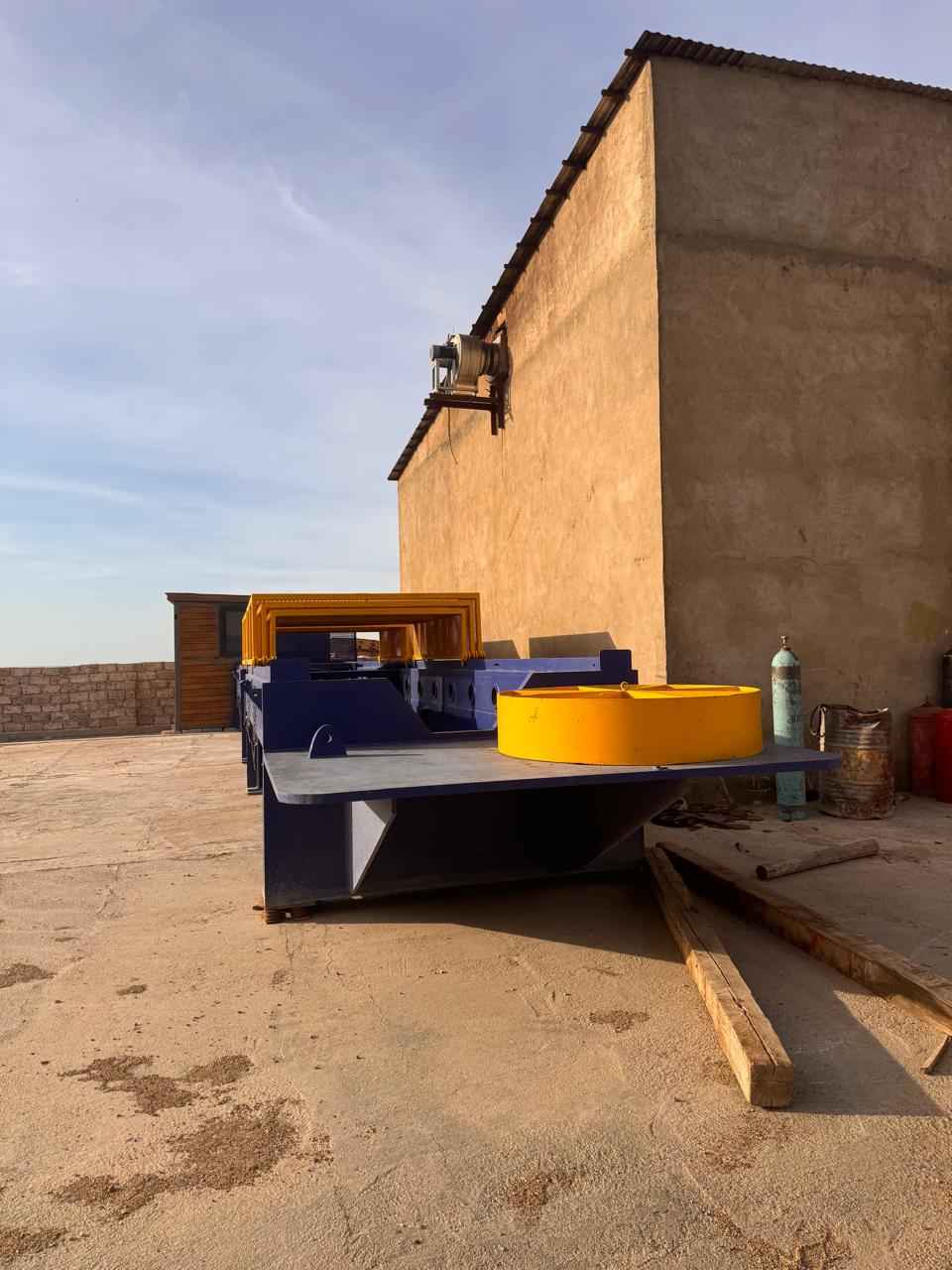

Photographs of the test bed and specimens
Six actual photographs, from the overall structure to the control panel and a wire rope after testing. Select an image to inspect the details.
Questions before testing
Can any item be tested at 500 tonnes?
No. 500 tonnes is the maximum test bed force specified by Lifting.kz. Test suitability depends on the item, its connections and dimensions, available fixtures and the agreed programme.
How does a proof load test differ from a break test?
A proof load test applies a pre-agreed force and assesses the specimen against defined criteria. A break test examines behaviour at failure and requires a separate specimen. The objective and criteria must be agreed before testing.
What information should I send with an enquiry?
Send the item specification, dimensions, material, working load limit or declared breaking force, connection details and client requirements. If documents are unavailable, start with photographs and a description of the task.
Is a certificate issued after testing?
Agree the required document, its contents and any requirements for the testing provider before placing the order. A photograph or video recording is not itself a certificate of conformity.
Can we send samples from another city?
We accept enquiries from Aktau, Atyrau, Oral (Uralsk), Almaty, Astana, Kyzylorda and other cities across Kazakhstan. Sample acceptance, packing, delivery and return arrangements are agreed in advance.
How do we obtain a price and schedule?
The quotation and schedule depend on the item, programme, fixtures and number of specimens. Send the initial details for an individual proposal; no fixed public price list is displayed.
We work with corporate customers in energy, construction and the marine sector. Lifting.kz supplies high-quality lifting equipment for demanding industrial applications, selecting equipment for the required working load and operating conditions. Our work includes inspection, supply and production solutions for Kazakhstan’s oil and gas infrastructure.
Let’s review your item and test programme
Specify the item type and dimensions, required force, number of specimens and dispatch city. Attach the specification, drawing or photographs of the connections.
